Valves Fitting in Ahmedabad
Kedar Plastic Product offers a wide-ranging portfolio of valves and valves fitting in Ahmadabad. The valve fittings manufactured with the best grade raw material as per global design standard helps meet the fast-paced changing industrial requirements.
Automatic irrigation is not a new term. It keeps you at the ease for all your operations including domestic, industrial, agriculture, and irrigation. Identifying the dynamic requirements of all the sectors, we provide products, which are precise and superior. We believe in investing enough in our R&D activities and earned higher trust from our global customer base.
We deliver international quality products to our global customer base and ensure timely delivery for the valves and valve fittings. Kedar Plastic Product offers a wide-ranging portfolio of valves and valves fitting in Ahmadabad, which help, meet the fast-paced changing industrial requirements.
Each Valve and fittings are designed and manufactured to conform to global standards of the Valve Industry such as ASME, API, DIN, BS or IS. All castings and forgings are checked on strict parameters to guarantee that all raw materials conform to specifications like ASTM.
Levelheaded design standard, firm quality control by performing scrupulous quality checking of every part at diverse production stages has made our products highly preferable in the global marketplace.
PP-BALL-VALVE-FLAGE-END
Specification :
CONSTRUCTION : 3 piece design, Reinforced Ball, Teflon Seated, full bore
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : Flanged as per ANSI B 16.5 (150 #) & as per BS 10 (Table D/E/F) & DIN STD.
AVAILABLE M.O.C. : PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE)
AVAILABLE SIZE : 1” to 4”
PP-FLOW-INDICATOR
Specification :
CONSTRUCTION : 3 piece design, Teflon Seated, full bore
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : Flanged as per ANSI B 16.5 (150 #) & as per BS 10 (Table D/E/F) & DIN STD.
AVAILABLE M.O.C. : PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE)
AVAILABLE SIZE : 2” to 8”

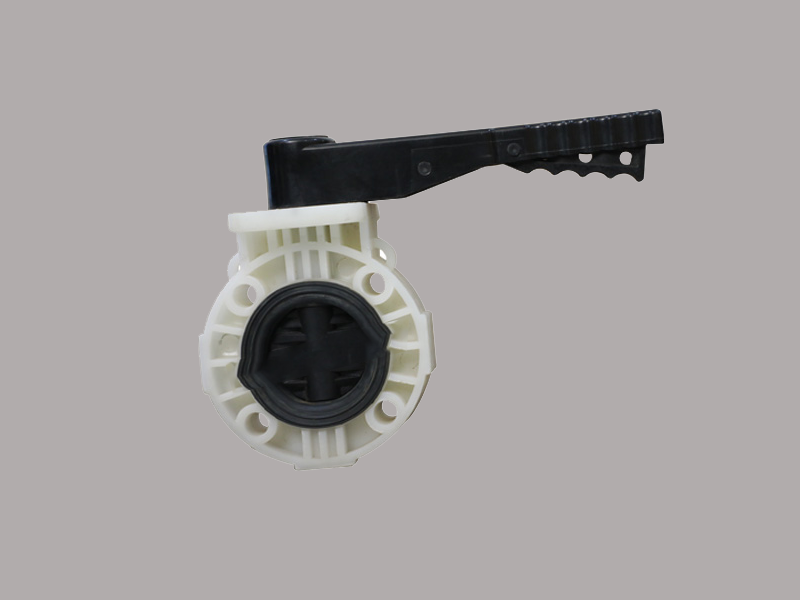

PP-BUTTERFLY-VALVE-FLANGE END
Specification :
CONSTRUCTION : Single Piece Only
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : Flanged as per ASA 150 #
AVAILABLE M.O.C. : PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE)
AVAILABLE SIZE : 2” to 8”

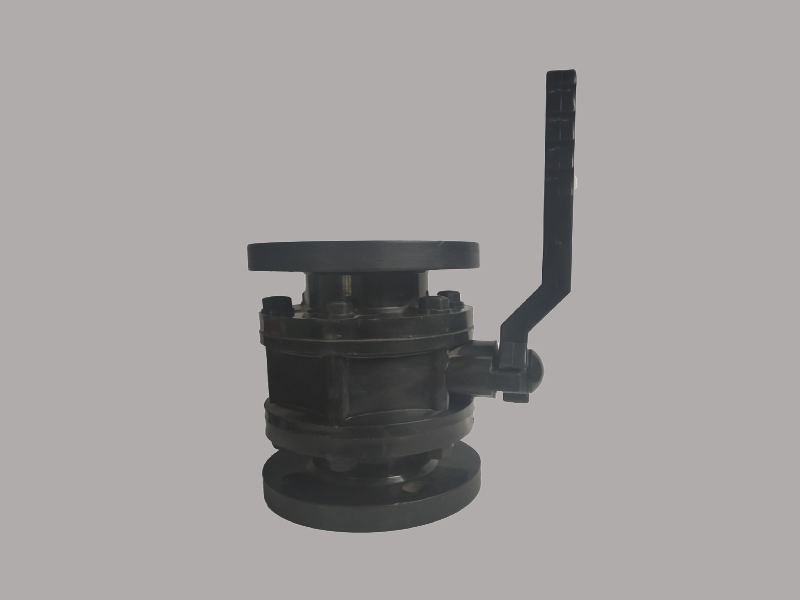

HDPE-BALL-VALVE-FLAGE-END
Specification :
CONSTRUCTION : 3 piece design, Reinforced Ball, Teflon Seated, full bore
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : Flanged as per ANSI B 16.5 (150 #) & as per BS 10 (Table D?E?F) & DIN STD.
AVAILABLE M.O.C. : PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE)
AVAILABLE SIZE : 1” to 4”

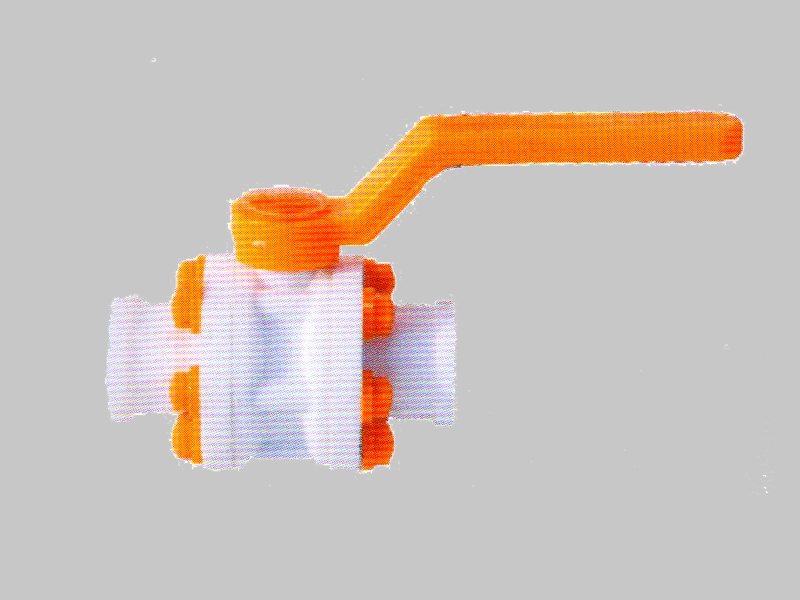

PP-BALL-SCREW-END
Specification :
CONSTRUCTION : Ball type, Soft Seated
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : Screw End (BSP Thred)
AVAILABLE M.O.C. : PP (POLYPROPYLENE) HDPE (HIGH DENSITY POLYETHLENE) ISOTACTIC PP PVDF (POLYVINYLIDENE FLUORIDE)
AVAILABLE SIZE : 1” to 4”

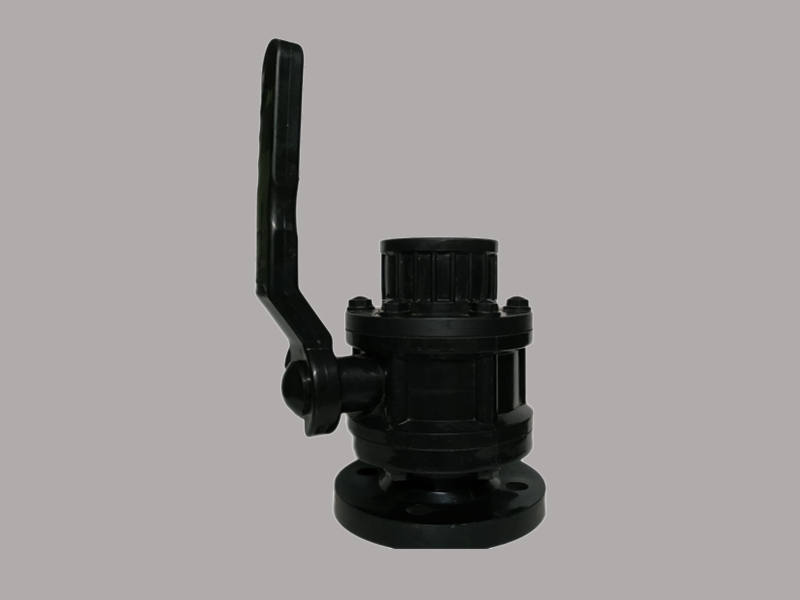

PP-BALL-VALVE-FLANGED/THREDED
Specification :
CONSTRUCTION : Ball type, Soft Seated
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : Screw End (BSP Thred) Flange End
AVAILABLE M.O.C. : PP (POLYPROPYLENE) ISOTACTIC PP
AVAILABLE SIZE : 1” to 4”

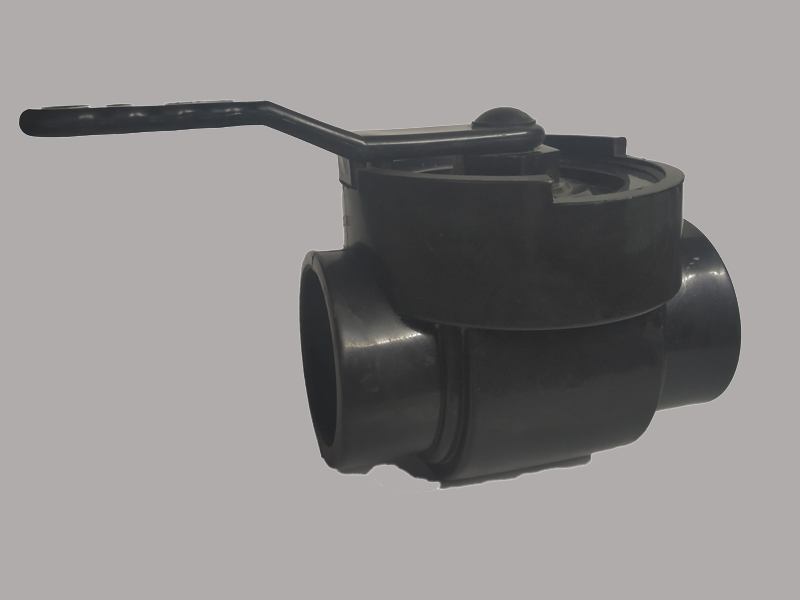

TOP-ENTRY-BALL-VALVE
Specification :
CONSTRUCTION : Ball type, Soft Seated
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : THRED / PLAIN
AVAILABLE M.O.C. : PP (POLYPROPYLENE)
AVAILABLE SIZE : 1/2” to 4”

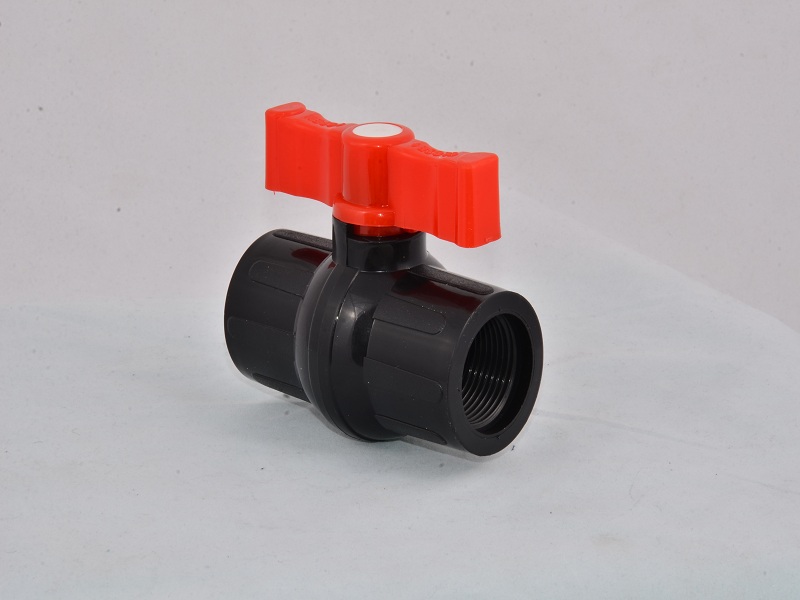

SOLID-SEAL-BALL-VALVE
Specification :
CONSTRUCTION : Ball type, Soft Seated
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : THRED /PLAIN
AVAILABLE M.O.C. : PP (POLYPROPYLENE)
AVAILABLE SIZE : 2” to 4”
UPVC BALL VALVE
Specification :
CONSTRUCTION : Ball type, Soft Seated
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
END CONNECTIONS : PLAIN AVAILABLE M.O.C. : PP (POLYPROPYLENE) UPVC
AVAILABLE SIZE : 1/2” to 2”

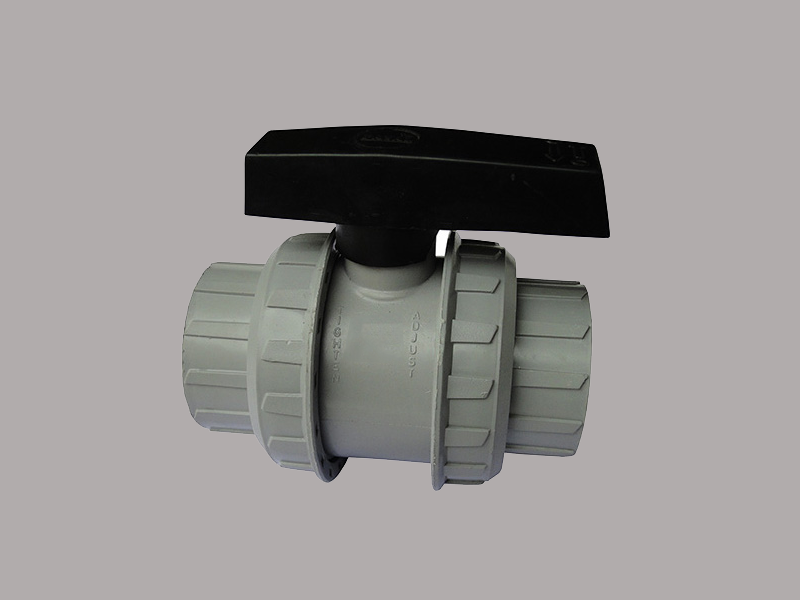

PP-UNION-TYPE-BALL-VALVE
Specification :
CONSTRUCTION : Ball type, Soft Seated
DESIGN & MANUFACTURING STD. : As per Manufacturer’s Standard
THRED CONNECTION AS PER YOUR REQUIRED
AVAILABLE M.O.C. : PP (POLYPROPYLENE)
AVAILABLE SIZE : 2” to 3”
FEATURES
- Valves are of three piece design, fitted with six set of metallic studs and nuts which contributes to their sturdy construction.
- Valves have full bore; thereby, allowing full 100% flow.
- Body and Stem seals are offered in various elastomers like EPDM, Neoprene, Hyplon, Butyl, Viton and also in PTFE for chemical resistance against most chemicals.
- Valves with PTFE seals are provided with steel ring inserts which gives better sealing and safety features.
- Steel inserts in stem and handle give more strength, sturdiness, longer life and better performance.
- Carbon black resists ultraviolet rays and prevents degradation of polypropylene in sunlight exposure.
- Available in screwed end connections also.
Size Range :
15 mm NB to 150 mm NB.Drilling :
As per all internationally accepted standards, such as BS, DIN, ASA 150 etc.Hydrostatic Test :
At 10 kg/sq.cm.g for Body and Seat..BILL OF MATERIAL
| No. | Part | Qty. | Material |
|---|---|---|---|
| 1 | Body | 1 | Iso. PP/PPH/PVDF/A. PP/A. HD |
| 2 | End piece | 2 | Iso. PP/PPH/PVDF/A. PP/A. HD |
| 3 | Ball | 1 | Iso. PP/PPH/PVDF/A. PP/A. HD |
| 4 | Stem | 1 | MS/SS304/SS316 insert moulded with Iso. PP/PPH/PVDF/A. PP/A. HD |
| 5 | Seat | 2 | PTFE |
| 6 | Body Seal 0 rings | 2 | EPDM/NEOPRENE /PTFE / VITON |
| 7 | Stem Seal 0 rings | 2 | EPDM/NEOPRENE /PTFE / VITON |
| 8 | Bearing | 1 | PTFE |
| 9 | Bearing | 1 | Iso. PP |
| 10 | Distance Piece | 1 | Iso. PP |
| 11 | Stud, Nut & Washer | - | MS / SS304/ SS316 |
| 12 | Stem Nut | 1 | MS / SS304/ SS316 |
| 13 | Nut Cap | - | Iso. PP |
| 14 | Handle | 1 | MS insert moulded with PP |
| 15 | Handle Cap | 1 | Iso. PP |
